Down Hole Pressure Gauges
A range of Pressure Gauges and Surface Equipment Provide High Resolution Permanent Monitoring of Well Pressure and Temperature.
The Litewell electrical monitoring system comprises a range of downhole pressure gauges and surface equipment which provide high-resolution permanent monitoring of well pressure, temperature and performance.
The Litewell electrical monitoring system comprises a range of downhole pressure gauges and surface equipment which provide high-resolution permanent monitoring of well pressure, temperature and performance.
Our range of permanent gauges have a fully welded corrosive-resistant alloy design based on material selection, as well as a redundant pressure testable metal-to-metal cable head. This makes them ideal for providing long-term data quality and reliability.
Using digital data transmission and subsurface signal processing they eliminate the effects of noise from signal transmission, maximizing accuracy and stability of measurement.
This downhole network supports bi-directional communication, delivers the ability to remove a sensor or gauge from the line, and enables monitoring of multiple zones. This assists with redundancy and integration, without the cost and risk associated with running multiple lines.
The Litewell electrical monitoring system comprises a range of downhole pressure gauges and surface equipment which provide high-resolution permanent monitoring of well pressure, temperature and performance.
The Litewell electrical monitoring system comprises a range of downhole pressure gauges and surface equipment which provide high-resolution permanent monitoring of well pressure, temperature and performance.Downhole Gauges

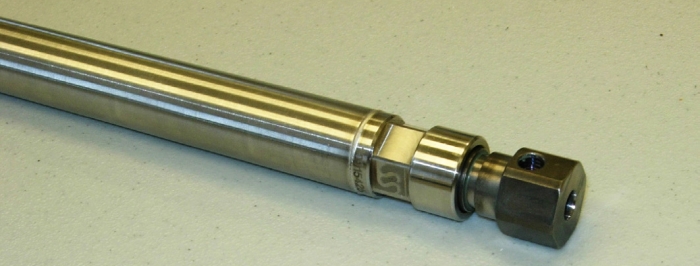

Litewell's permanent Sapphire and Quartz pressure gauges use proprietary technology to record pressure and temperature data downhole, before transmitting this data to the surface via a high speed telemetry link. We currently offer a range of pressure/temperature sensors to suit all well specifications and budgets.Our range of permanent gauges have a fully welded corrosive-resistant alloy design based on material selection, as well as a redundant pressure testable metal-to-metal cable head. This makes them ideal for providing long-term data quality and reliability.
Using digital data transmission and subsurface signal processing they eliminate the effects of noise from signal transmission, maximizing accuracy and stability of measurement.
Multi-drop Permanent Downhole Monitoring
Litewell’s multi-drop permanent downhole monitoring system provides the ability to install multiple sensors on a single Tubing Encapsulated Conductor Cable (TEC cable). This provides a cost-effective solution when multiple sensors are required. Each gauge configuration is connected to the wellhead electrical outlet through a monoconductor tube wire strapped to the tubing, thus allowing real-time continuous readout of the reservoir parameters without production shut-in, under dynamic well conditionsThis downhole network supports bi-directional communication, delivers the ability to remove a sensor or gauge from the line, and enables monitoring of multiple zones. This assists with redundancy and integration, without the cost and risk associated with running multiple lines.
System Features
- Can be configured and deployed as a single, dual “side-by-side”, or “multi-drop” gauge permanent monitoring system
- 100% welded gauge options with testable redundant metal-to-metal seal cable head
- H2S and CO2 corrosive resistance (with 718 Inconel material selection)
- Hybrid electronic technology for long-term stability and reliability
- Capable of either annular or tubing measurement
